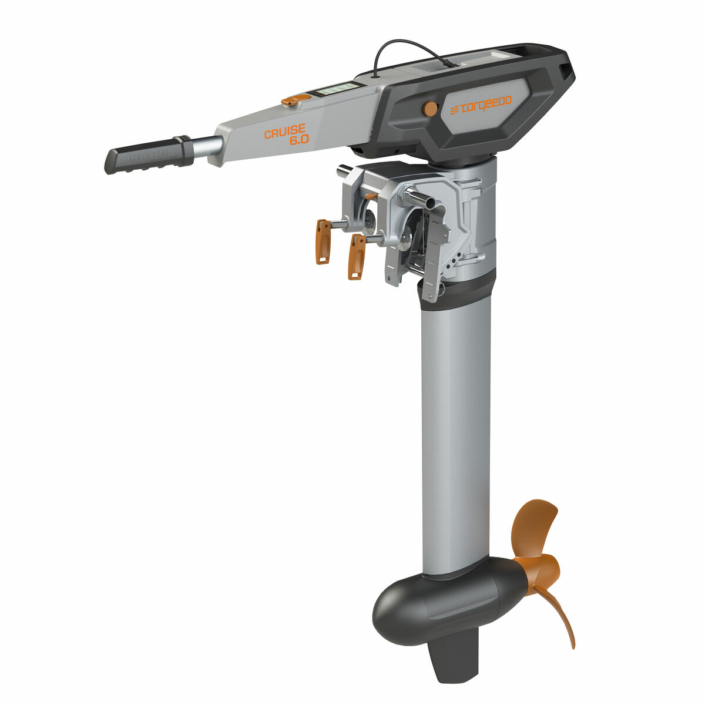

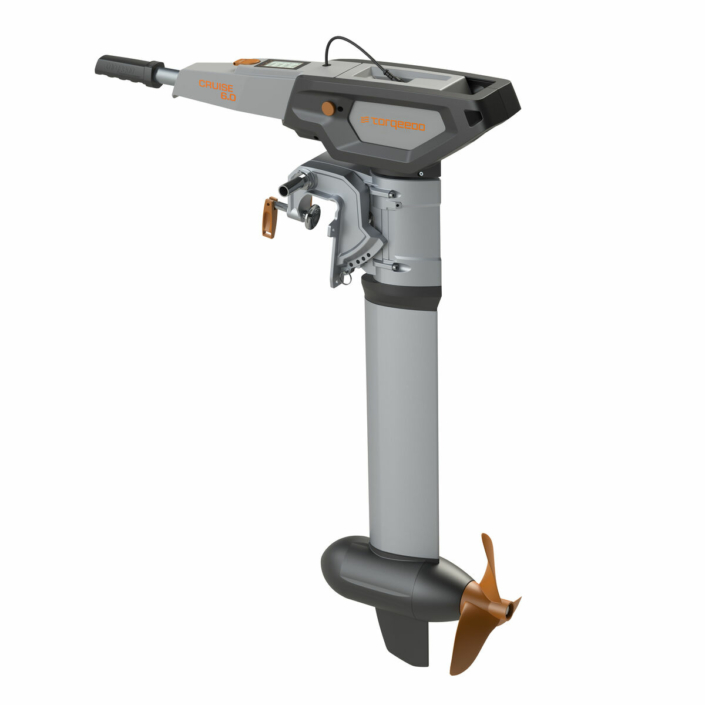

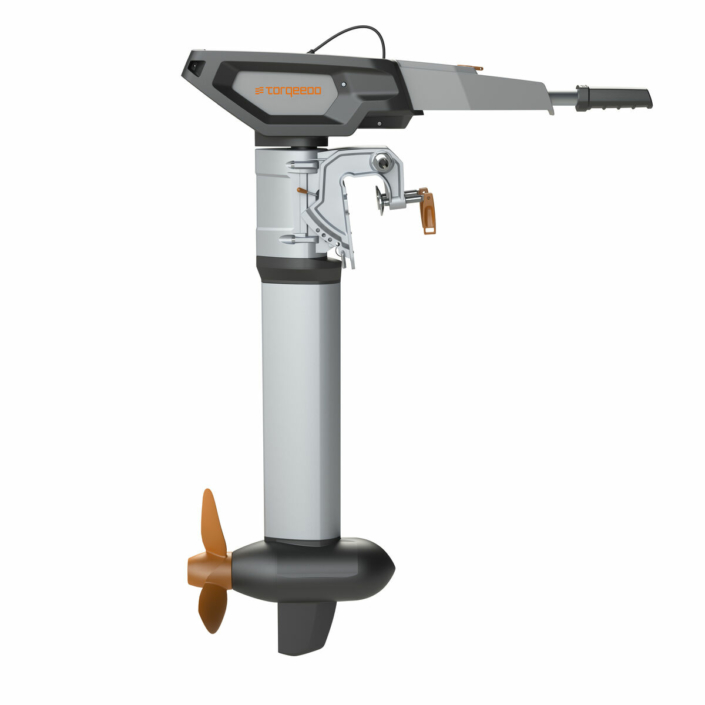

TORQEEDO CRUISE 6.0 T
Electric outboard for motorboats and sailboats up to 6 tons
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users.
All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Cruise 6.0 T is a tiller-equipped 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons.
SPECIFICATIONS
Cruise 6.0 T – Benefits
- High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard
- Pair with Power 48-5000 for best performance and accurate range/runtime functionality
- T model is equipped with tiller control with integrated display screen and magnetic kill switch (included in scope of delivery)
- Rugged pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties – ships with anode set for fresh and saltwater
- Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and additional cable set part number 1990-00 is required
Cruise 6.0 with 1 x Power 48-5000
As tested on Linder 400 Sportsman
Technical Data Cruise
| Cruise 6.0 T | |
|---|---|
| Input power in watts | 6000 |
| Propulsive power in watts | 3504 |
| Comparable petrol outboards (propulsive power) | 9.9 HP |
| Comparable petrol outboards (thrust) | 15 HP |
| Maximum overall efficiency in % | 58 |
| Static thrust in lbs* | 230 |
| Integrated battery | – |
| Nominal voltage | 48 |
| Final charging voltage | – |
| Total weight in kg | 21.3 (S) / 21.8 (L) |
| Motor weight without battery in kg | – |
| Weight of integrated battery | – |
| Shaft length in cm | 62.5 (S) / 75.5 (L) |
| Standard propeller v = speed in km/h at p = power in watts |
Propeller B 12,5 x 17 HSP |
| Alternative propeller options | Propeller B 12 x 13 THR |
| 1130 | |
| Control | Tiller |
| Steering | 360° lockable |
| Tilting device | Manual with grounding protection |
| Tilt angle | 61,3° |
| Trim device | Manual, 4-step |
| Integrated on-board computer | Yes |
| Stepless forward/reverse drive | Yes |
