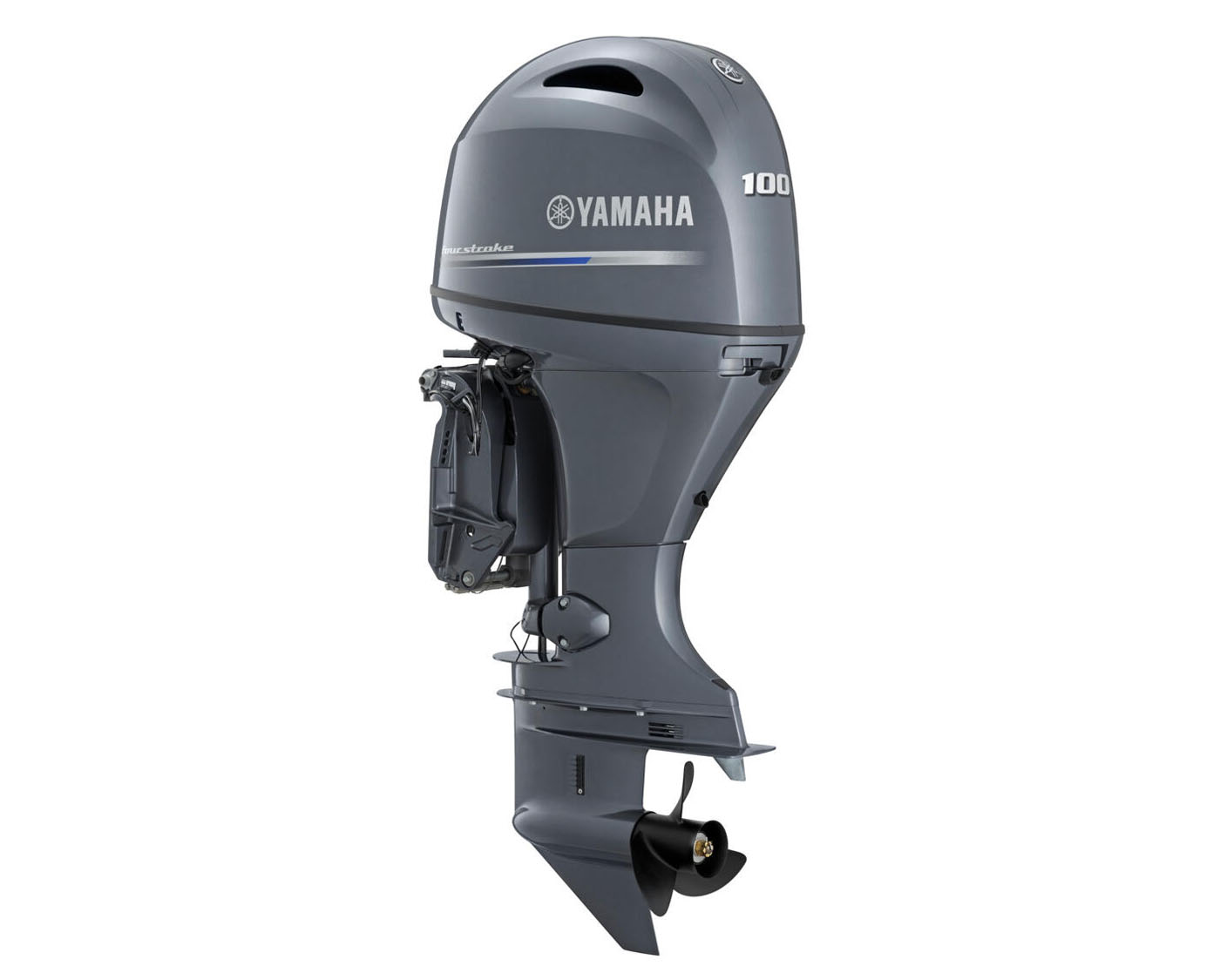

YAMAHA 100 HP
Unlock efficient power and innovative performance with the Yamaha 100 HP. This outboard’s advanced technology provides strong acceleration and precise handling, while maximizing fuel economy. Rely on Yamaha’s proven dependability for peace of mind on every voyage.
SPECIFICATIONS
Engine
|
Engine type |
4-stroke |
|
Displacement |
1,832 cm³ |
|
No. of cylinders/configuration |
4/In-line, 16-valve, SOHC |
|
Bore x stroke |
81.0 mm x 88.9 mm |
|
Prop shaft output at mid range |
73.5 kW / 5,500 rpm |
|
Full throttle operating range |
5,000 – 6,000 rpm |
|
Lubrication system |
Wet sump |
|
Fuel Induction System |
EFI |
|
Ignition / advance system |
TCI |
|
Starter system |
Electric with Prime Start™ |
|
Gear ratio |
2.15 (28:13) |
Dimensions
|
Recommended boat transom height |
L516X:643mm |
|
Fuel tank capacity |
– |
|
Oil pan capacity |
3.2litres |
|
Weight without propeller |
162kg – 166kg |
Additional Features
|
Control |
Remote Control |
|
Trim & tilt method |
Power Trim & Tilt |
|
Lighting Coil / Alternator |
12V -35Awith rectifier/regulator |
|
Engine immobiliser |
YCOP optional |
|
Propeller |
Optional |
|
Variable Trolling RPM |
With DN Gauges or m-f tiller handle |
|
Shift Dampener System (SDS) |
Optional |
|
Remark |
The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
FEATURES

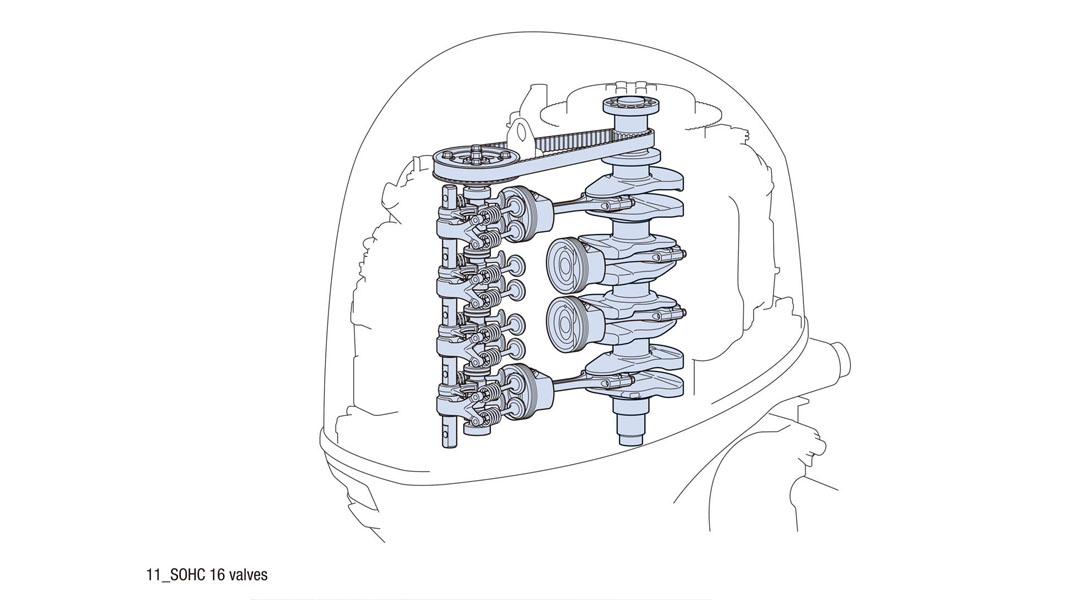

16-valve SOHC engine layout
The SOHC (Single Overhead Camshaft) layout, with its large cylinder capacity and 16-valve format, results in optimum valve actuation, delivering and improved acceleration and performance. Yamaha’s latest 4-stroke technology combines this with advanced intake and exhaust system designs – and our unique multi-point Electronic Fuel Injection (EFI).

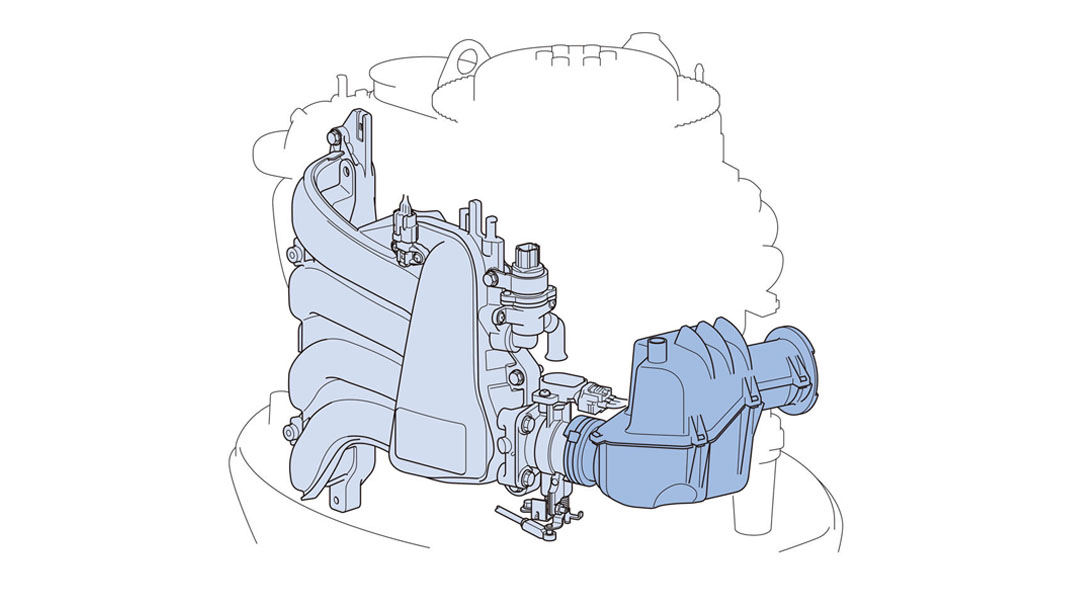

Large single throttle valve
This innovative system controls the flow of air to all four cylinders, pulse-tuning it before it reaches the injectors of the EFI system. The air is therefore delivered with ultimate precision, according to the demands of the driver and the combustion conditions.
Digital network gauges
The 70hp is compatible with Yamaha’s Digital Network Gauges, giving you the information needed to maximise engine performance and efficiency, including: a Multifunction Tachometer with RPM, Hours Run, Trim Angle, Oil Pressure, Warning lamps and Variable RPM control; and a Speed/Fuel Management Gauge with Speed, Tank Capacity and Fuel Economy.

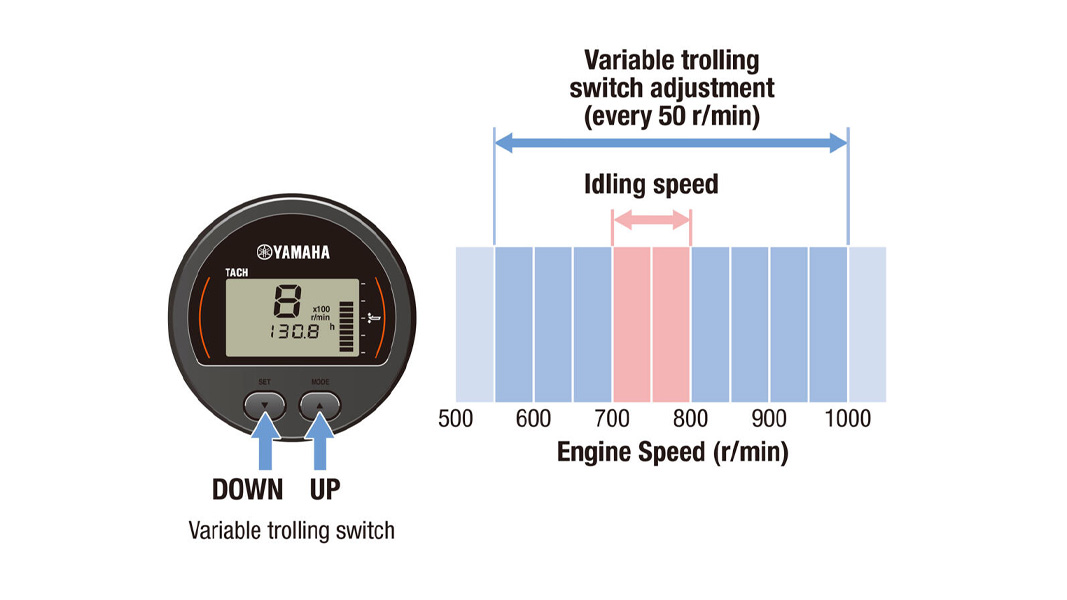

Easy control of engine RPM for trolling
Another feature of the Digital Network System option is the handy button on the tachometer which gives you instant control of the engine RPM – making it simple to adjust the engine speed in convenient steps of 50 RPM between 550 and 1000 RPM. Smooth, relaxed cruising is the reward.

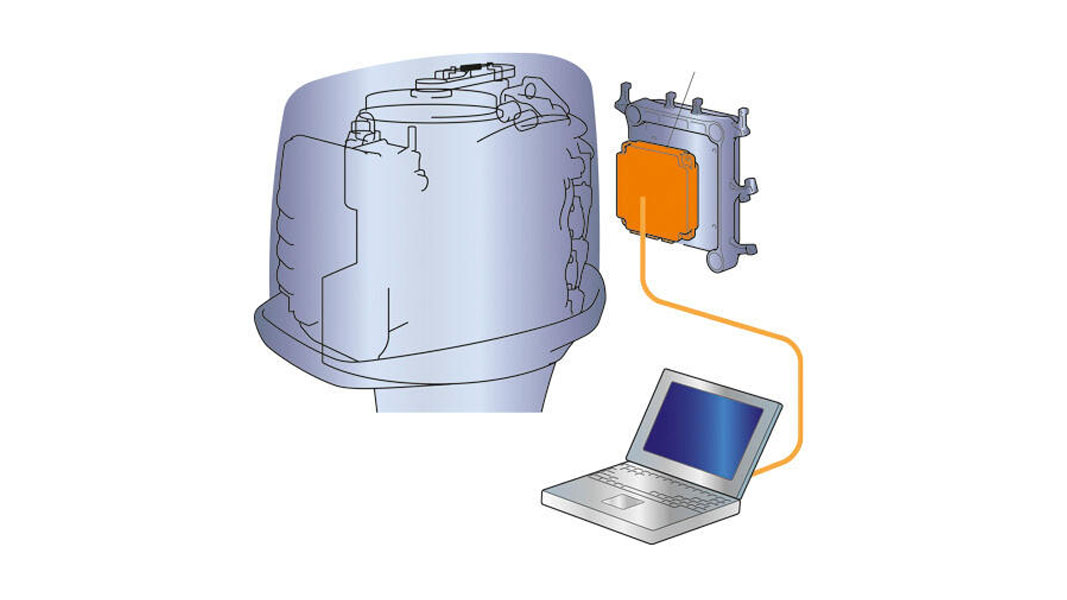

Micro-computer ECM (Engine Control Module)
A reliable micro-computer is the ‘brain’ of your engine. By constantly monitoring all data inputs and settings, it helps to ensure smooth running and optimised ignition timings – as well as automatically activating warning and protection systems. A handy access port lets authorised Yamaha dealers easily diagnose any problems.
Yamaha Customer Outboard Protection
Yamaha’s unique Y-COP immobiliser system is a simple, easy to use and highly effective option – the neat and simple remote control locks and unlocks the engine at the push of a button. This prevents your outboard engine being taken for an unauthorised joyride, offering you peace of mind when leaving your boat unattended.
