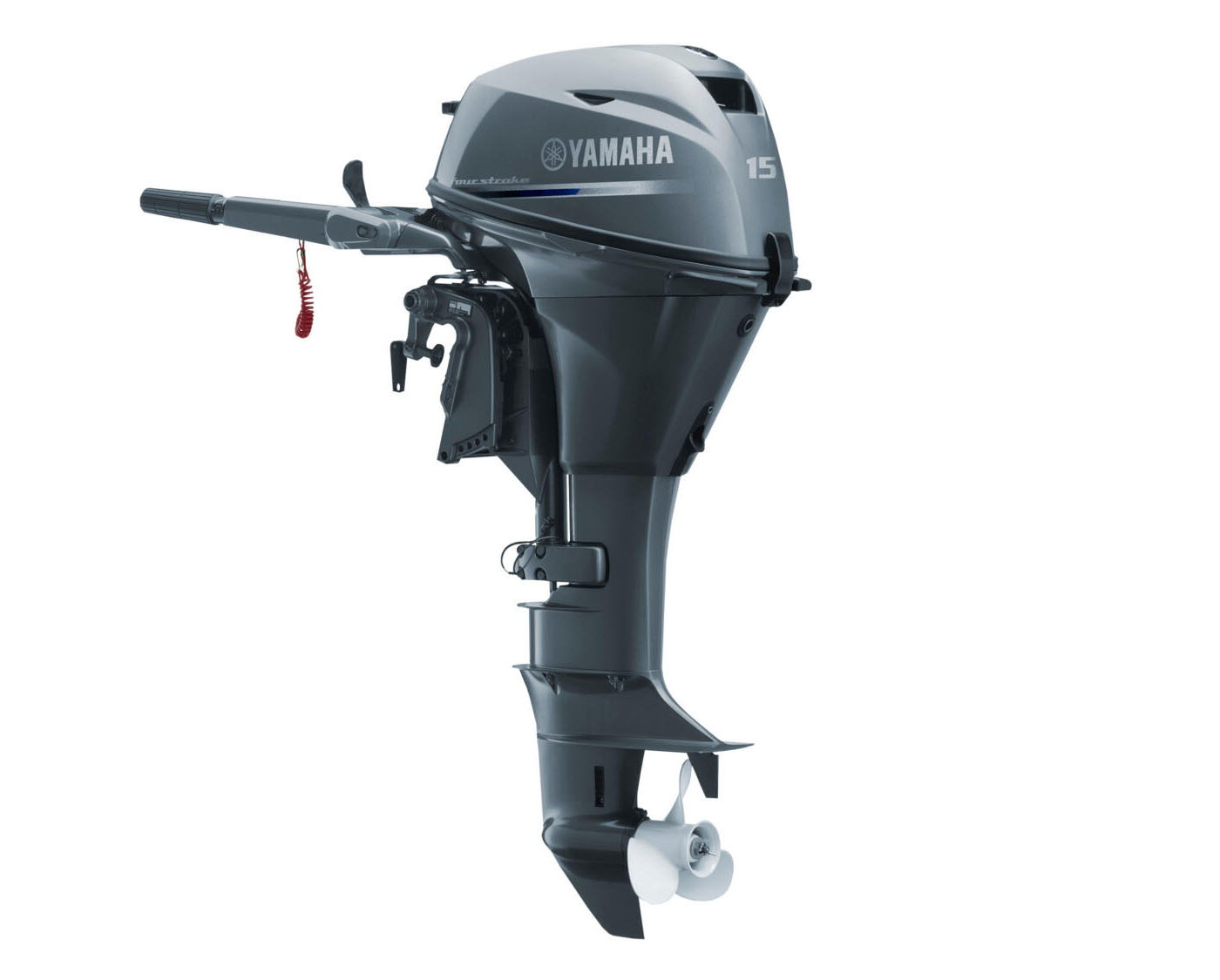

YAMAHA 15 HP
Searching for the perfect balance of power and precision? The Yamaha 15 HP delivers! Experience effortless handling and superior control, ensuring a smooth and confident ride every time. Its proven reliability makes it the ultimate choice for your boating adventures.
SPECIFICATIONS
Engine
|
Engine type |
4-stroke |
|
Displacement |
362 cm³ |
|
No. of cylinders/configuration |
2/In-line, SOHC |
|
Bore x stroke |
63.0 mm x 58.1 mm |
|
Prop shaft output at mid range |
11.0 / 5,500 rpm |
|
Full throttle operating range |
5,000 – 6,000 rpm |
|
Lubrication system |
Wet sump |
|
Fuel Induction System |
1-Carb |
|
Ignition / advance system |
CDI |
|
Starter system |
Electric (E, EH, EP), Manual (MH) with prime start™ |
|
Gear ratio |
2.08 (27:13) |
Dimensions
|
Recommended boat transom height |
S438L:565mm |
|
Fuel tank capacity |
separate, 25litres |
|
Oil pan capacity |
1.8litres |
|
Weight without propeller |
51kg – 60kg |
Additional Features
|
Control |
Tiller handle (MH, EH), Remote control (E, EP) |
|
Trim & tilt method |
Power Tilt (EP), Manual (MH, EH, E) |
|
Lighting Coil / Alternator |
12V -10Awith rectifier/regulator** |
|
Propeller |
Included |
|
Remark |
The kW data in this sheet is based on the ICOMIA 28 standard, measured at the prop shaft |
FEATURES

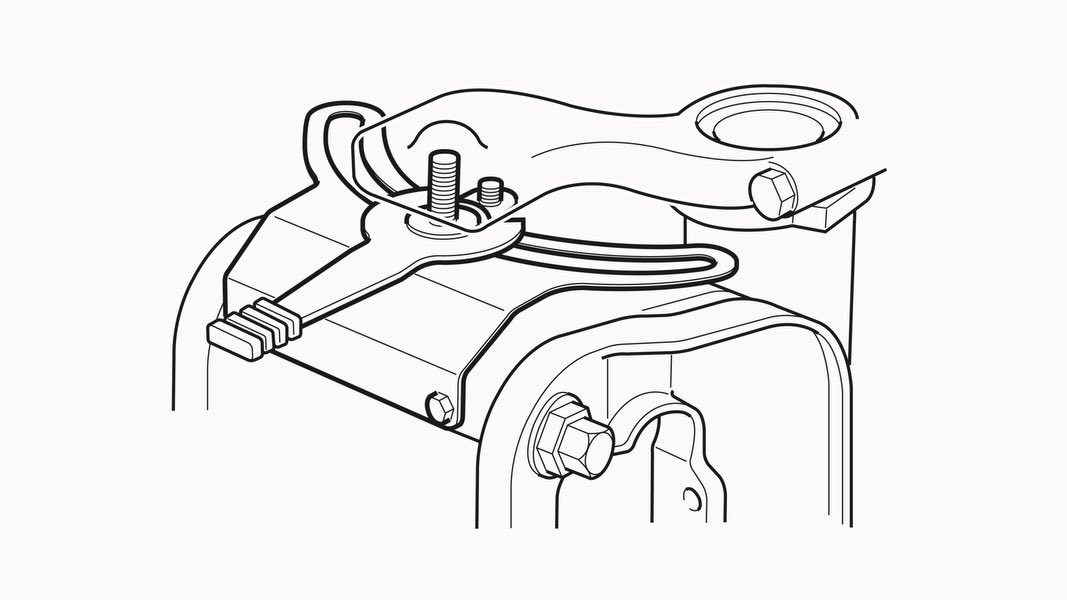

Steering friction
You’ll find the 15hp very easy to control and comfortable to drive, thanks to its many features – from the front-mounted shift lever and single-lever steering friction adjuster to the light-load recoil starter. A built-in handle on the steering bracket and resting pads on the rear, make for convenient handling and portability too.

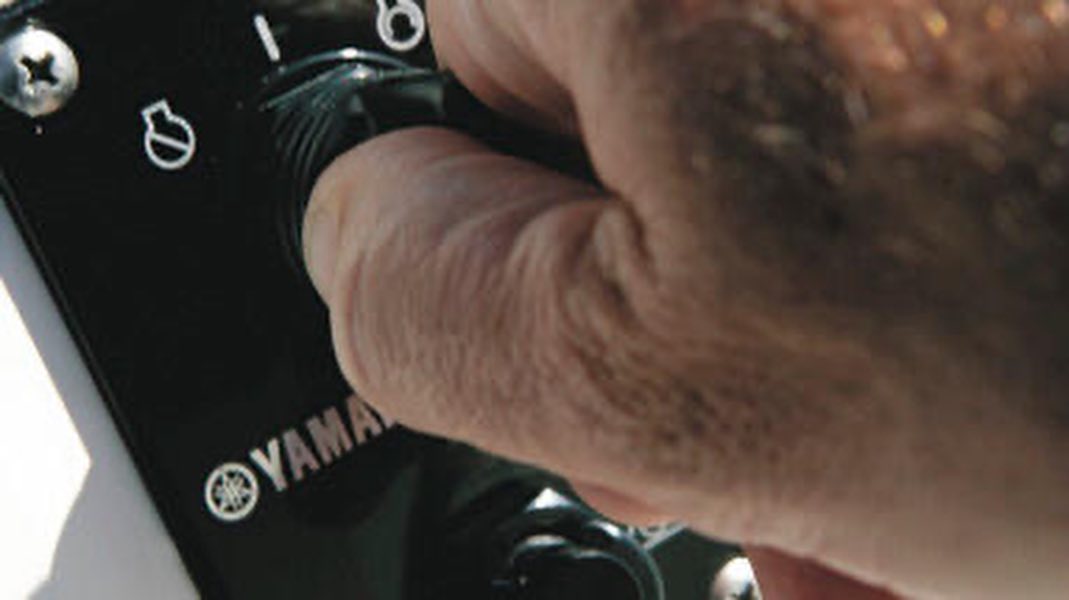

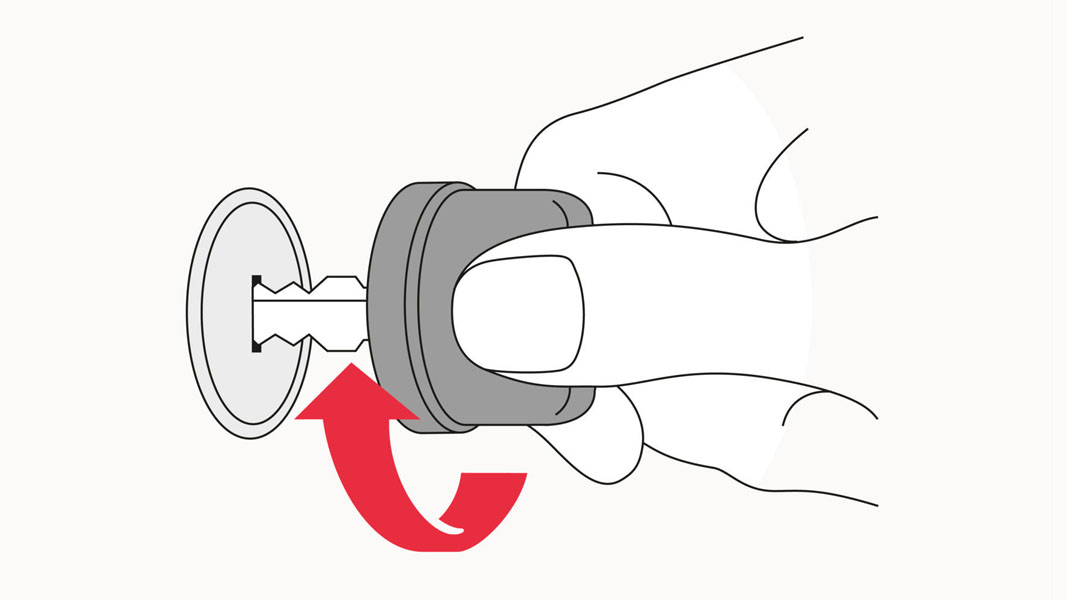

PrimeStart ™
Start your outboard engine as easily as starting a car – even from cold. Exclusive to Yamaha, the PrimeStart ™ system ensure that the engine fires first time, every time you engage either the Electric or Manual Start.
High-output alternator
Never get left short. A High-output alternator ensures that power is always available to start the engine – even after prolonged periods of idling or when you’ve been running at low revs and using numerous accessories.
Shallow Water Drive system
Cruise towards the shore with confidence thanks to Yamaha’s Shallow Water Drive system. Offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you’re cruising a murky lake or the crystal clear shallows of the sea.
F-N gears for easy control
Manual gear selection allows the engine to be warmed up in Neutral. The propeller will not turn until Forward is selected for safer idling. Ensures smoother acceleration and better control especially when turning. On Electric Start versions, the power supply to the starter motor is isolated until Neutral is selected.
Fresh Water Flushing system
An easy-access, front-mounted connector allows you to easily flush salt and dirt from the waterways without having to run the engine: just connect a hose and you’re ready to go. This is a very efficient way to reduce corrosion and extend the life of your outboard.
