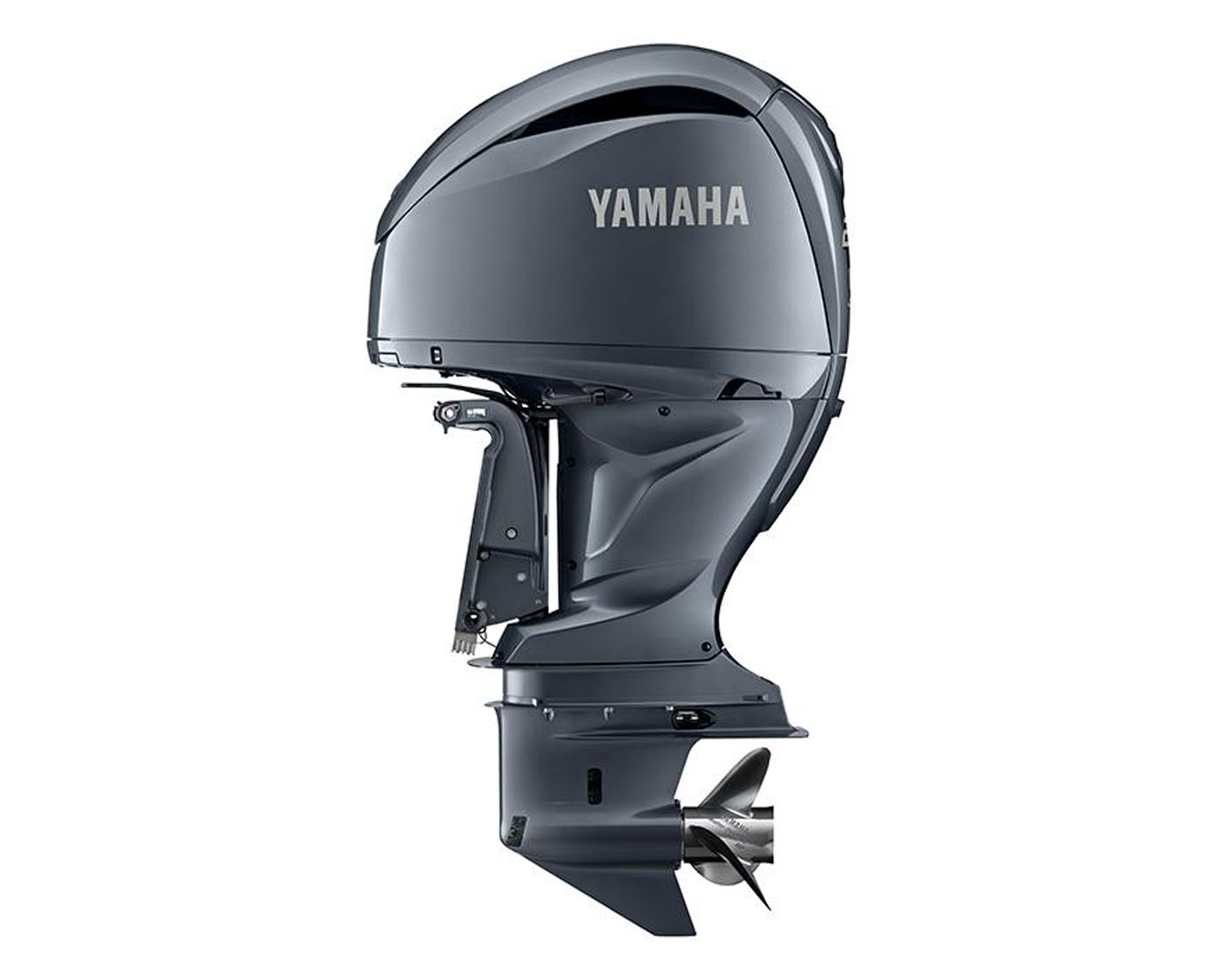

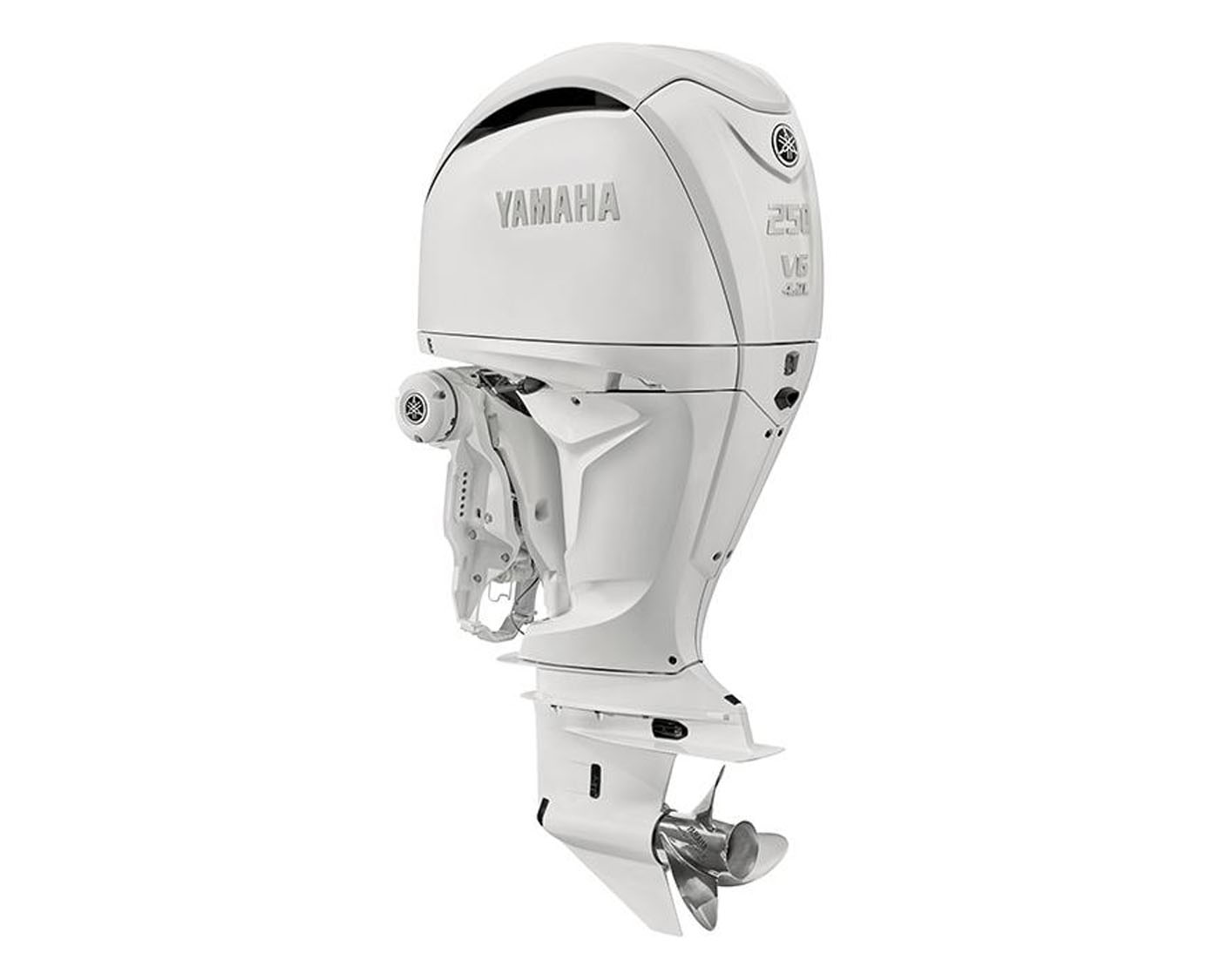

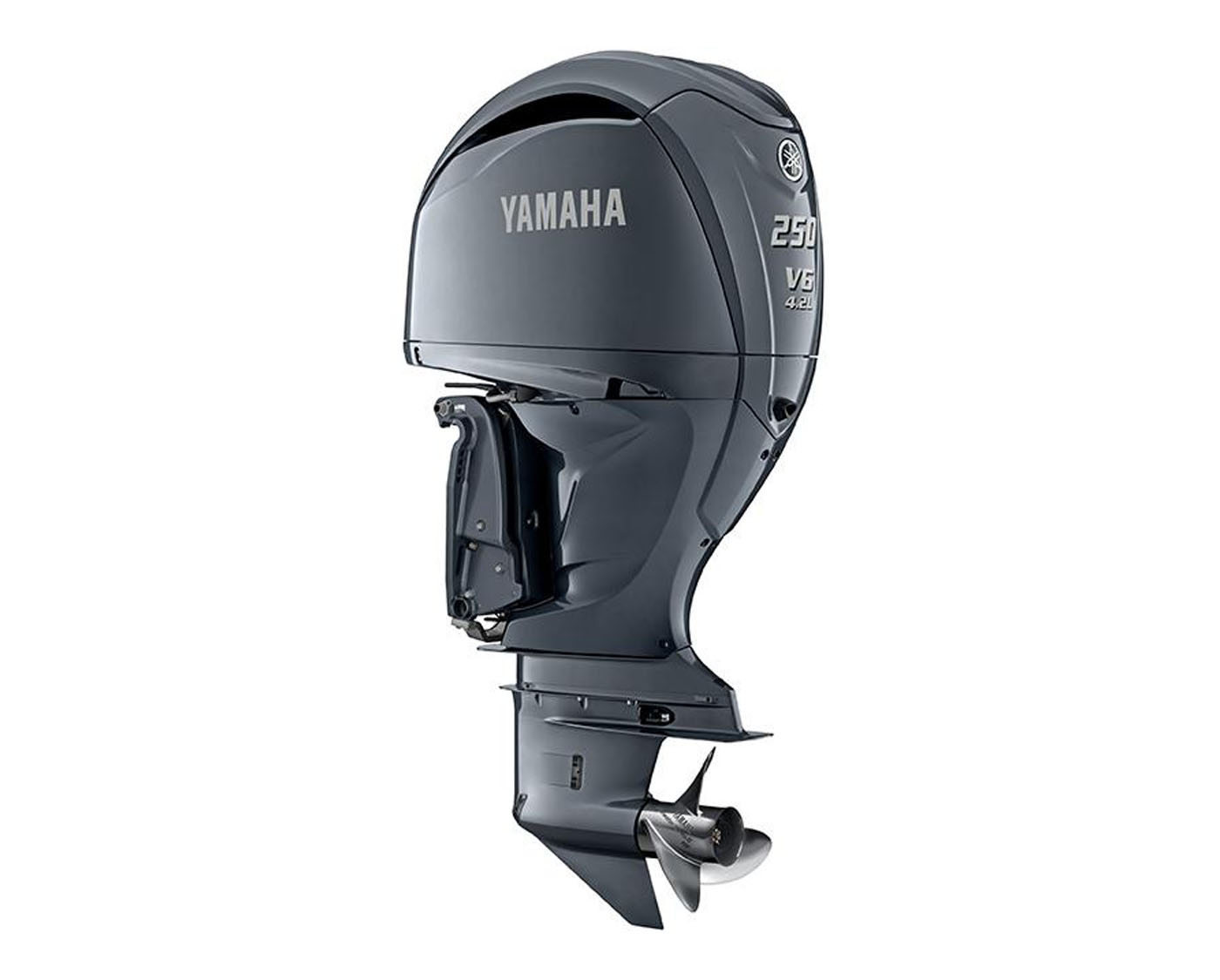

YAMAHA 250 HP
Experience the ultimate blend of exhilarating power and responsive control with the Yamaha 250 HP. Designed for serious boaters, it offers dominant acceleration and precise handling. Trust in Yamaha’s unwavering reliability to push boundaries and conquer any waterway with absolute confidence.
SPECIFICATIONS
Engine
|
Engine type |
4-stroke, DOHC |
|
Displacement |
4169 cm3 |
|
No. of cylinders/configuration |
60-deg. V6 |
|
Bore x stroke |
96.0 x 96.0 mm |
|
Prop shaft output at mid range |
183.8 kW (250 HP) @5500 r/min |
|
Full throttle operating range |
5,000-6,000 r/min |
|
Lubrication system |
Wet sump |
|
Fuel Induction System |
EFI |
|
Ignition / advance system |
TCI |
|
Starter system |
Electric |
|
Gear ratio |
1.75 (21/12) |
|
Carburettors |
Fuel Injection |
Dimensions
|
Oil pan capacity |
6.3 L/ 6.0 L *with/without oil filter exchange |
|
Weight without propeller |
260 kg – 268 kg |
Additional Features
|
Control |
Drive By Wire (DBW) |
|
Trim & tilt method |
Power Trim & Tilt |
|
Lighting Coil / Alternator |
70 A (max) (battery charging: 55 A) |
|
Engine immobiliser |
YCOP optional |
|
Propeller |
Optional |
|
Counter Rotation Model |
Available |
|
Variable Trolling RPM |
With DN Gauges |
|
Shallow Water Drive |
Standard |
|
Tilt limitter |
Standard |
|
Dual Battery Charging System |
Optional |
|
Digital Network Gauge (6Y8/6YC) |
Optional |
|
Digital Network Gauge II (CL7) |
Optional |
|
Shift Dampener System (SDS) |
Optional |
|
Full tilt up angle |
70 |
|
YCOP (Immobilizer) |
Applicable |
|
Remark |
Steering system vary depending on model. |
FEATURES

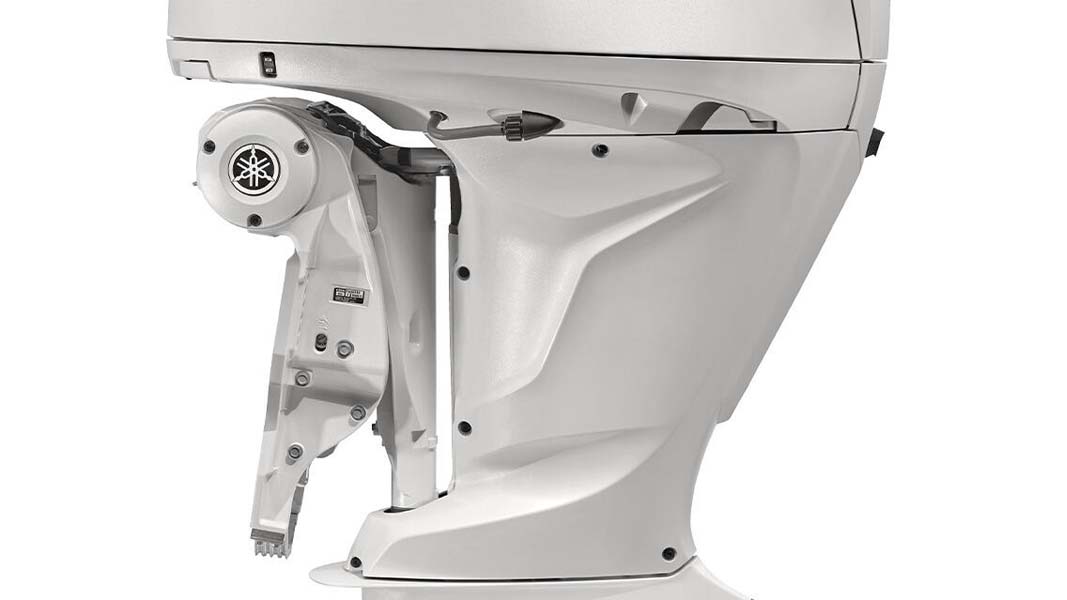

Built-in Digital Electric Steering (DES)
DES is now built-in to 250hp V6 Engines equipped with Steer by Wire. Yamaha DES offers a clean spacious bilge. There are no pumps, hoses, control units, need for fluid filling, and clean-up and no special bleeder ports or hoses. For re-powers, your technicians can rig DES significantly faster and more easily. DES equipped engines can also be fitted with the new optional bolt-on Helm Master EX system.

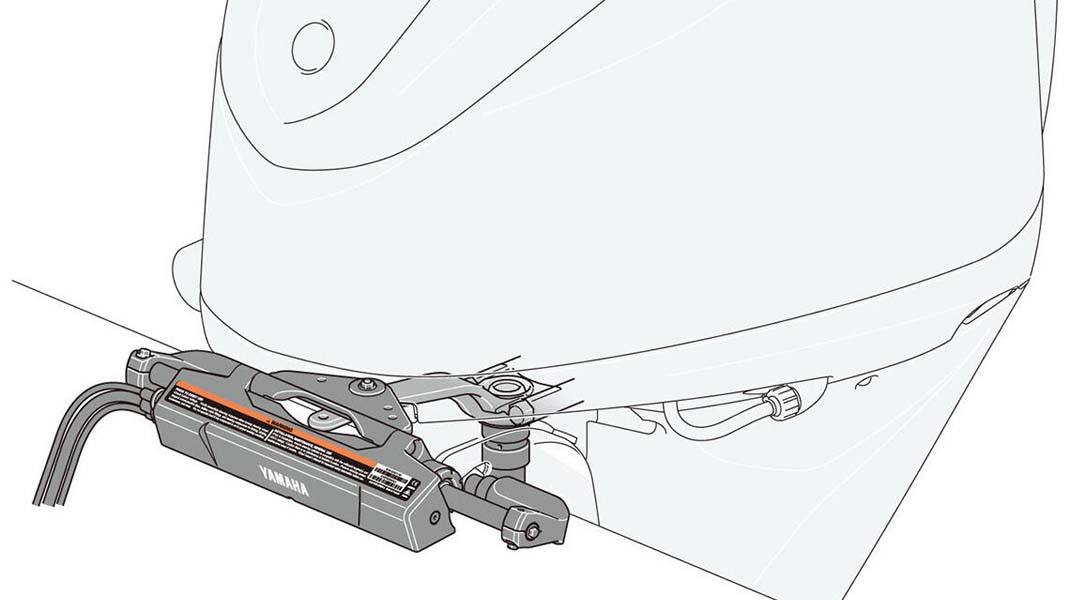

Optional bolt-on electric steering for Engines not equipped with SBW
250 HP V6 Engines are fully compatible with optional bolt-on Digital Electric Steering (DES) or traditional hydraulic steering systems.

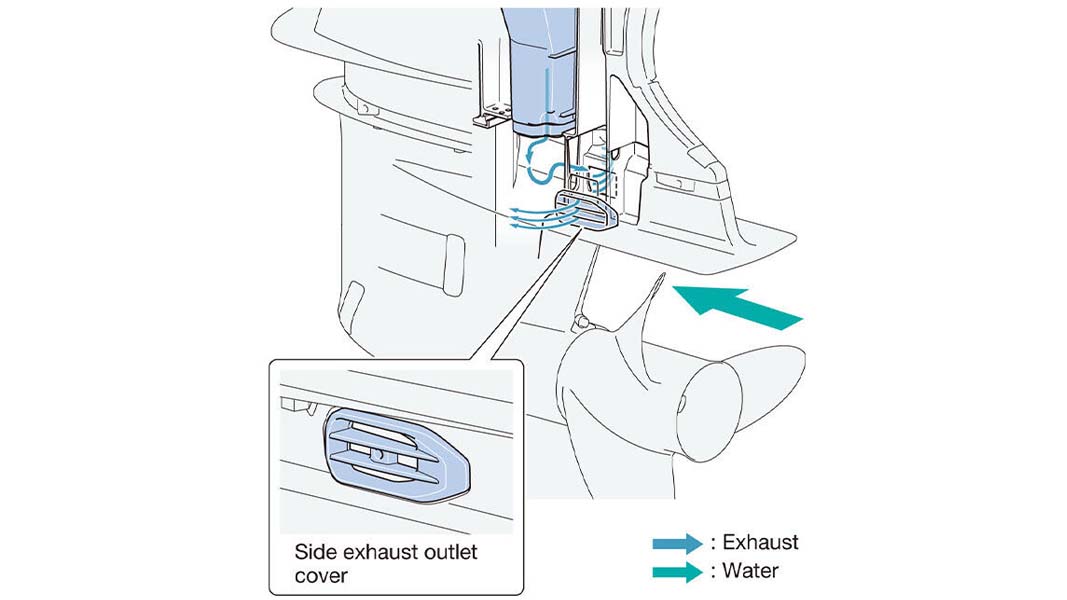

Thrust Enhancing Reverse Exhaust (TERE)
Stronger reverse and low-speed manoeuvring – TERE keeps exhaust bubbles above the anti-ventilation plate and out of the propeller below 2500 rpm when in reverse. The prop bites only bubble free water, resulting in outstanding reverse thrust and control. Combine with optional Digital Electric Steering and Helm Master EX
joystick for further enhanced manoeuvrability – very helpful around docks and confined spaces.

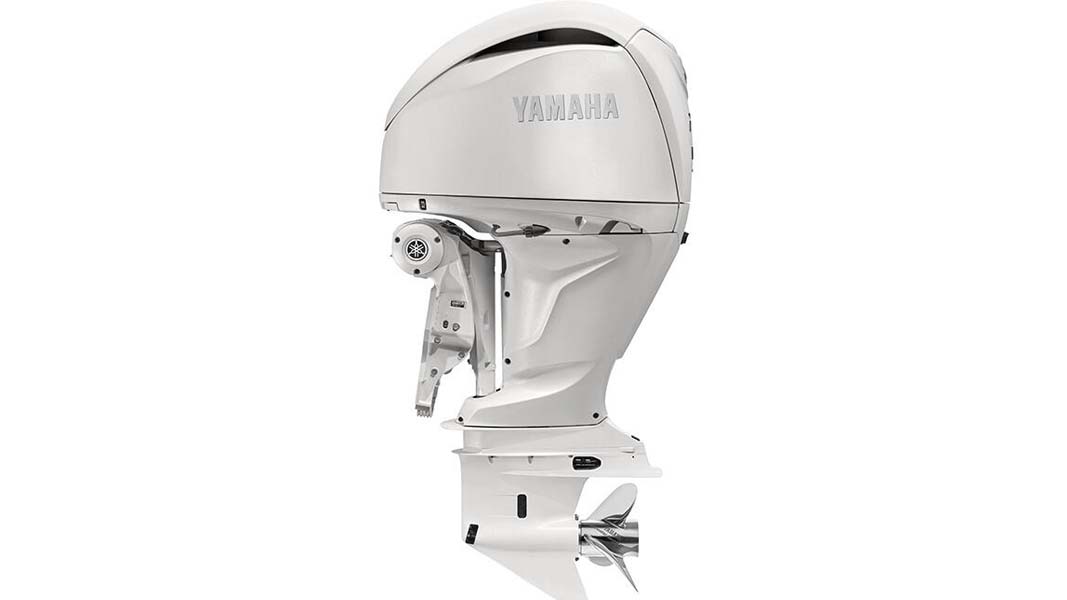

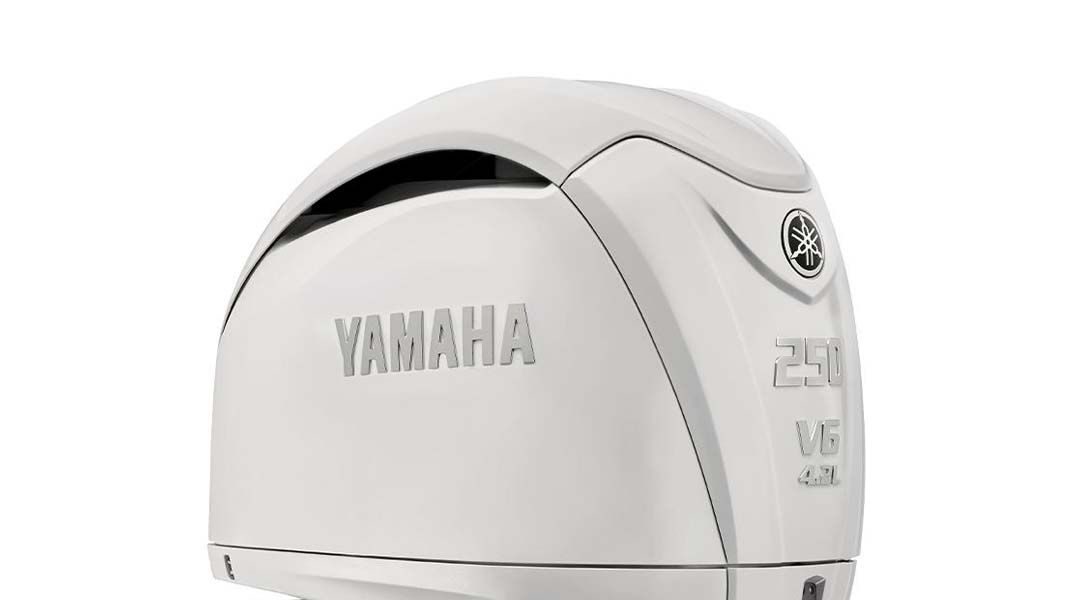

Elegant, sleek, lightweight design
Capitalising on many styling cues from its big brother, the XTO-like appearance now features a colour-matched lower unit, a new one-piece top cowling with water-draining air duct moulding, a new bottom cowling and apron shape and premium graphics. Stunning new looks meet proven performance to compliment and complete a broader array of premium boats.
Superior engine mounts
Taken from the XTO, the lower motor mounts are larger and softer resulting in less vibration and a softer ride.

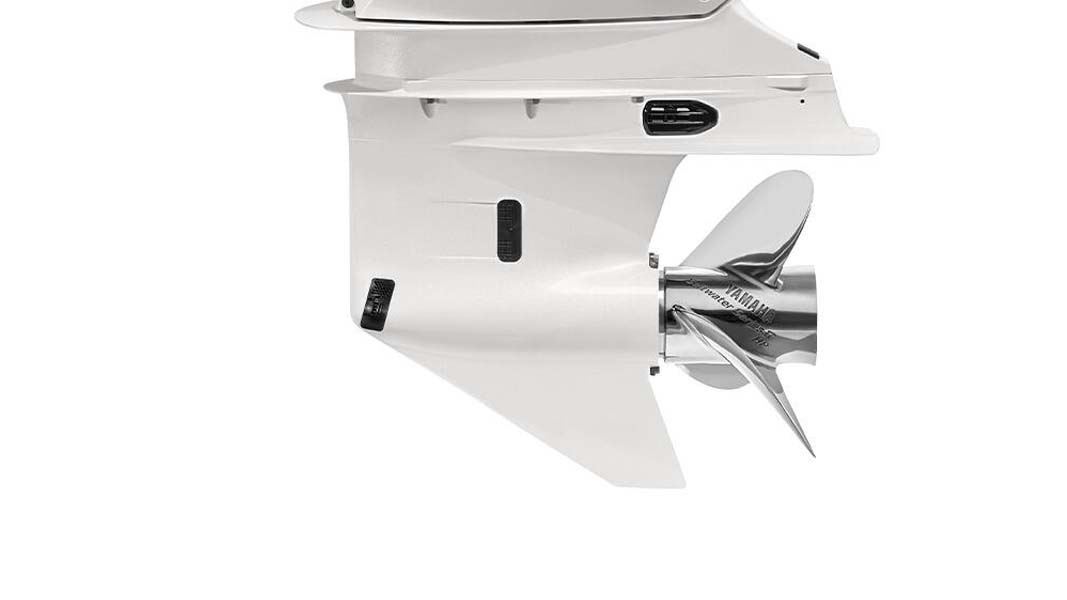

New and improved lower unit
The new 4.2-litre 250hp V6 has a new and improved lower unit, featuring new components and design features. The new design of the gear tooth profile has improved contact and reduces surface pressure. In addition, the durability has been improved by changing the oil flow inside the lower case and the bearings that support the gears.
